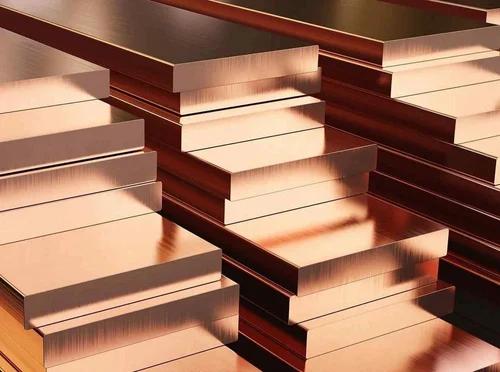

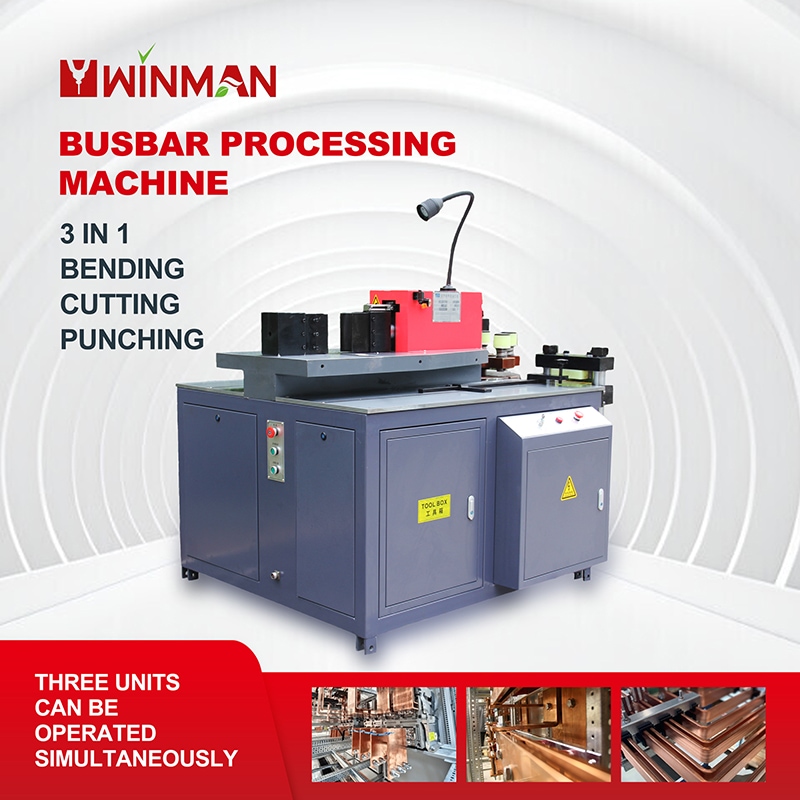

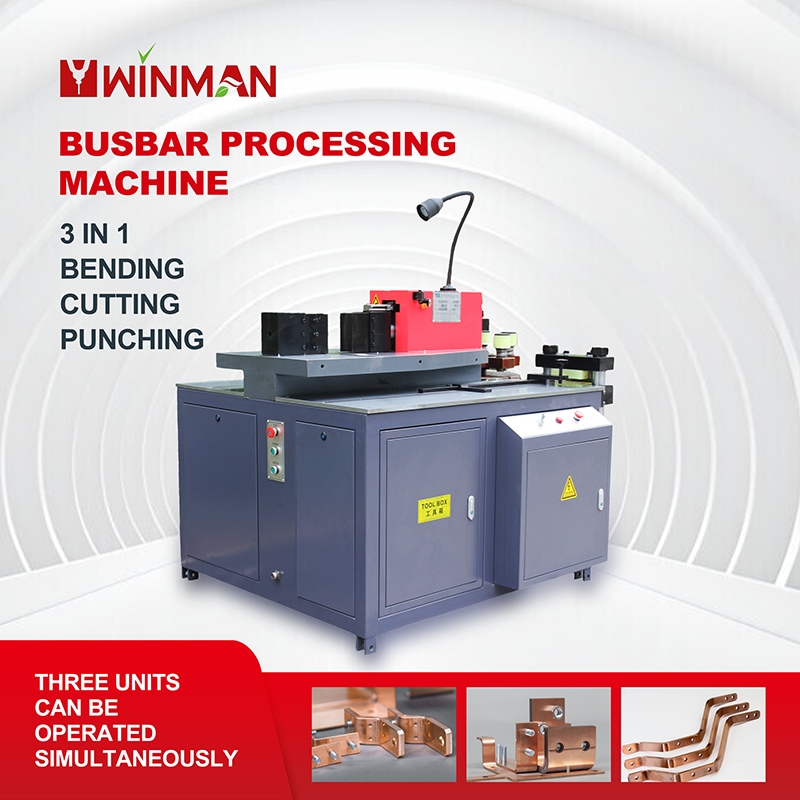

The WM series is a state-of-the-art 3-in-1 busbar processing machine designed for cutting, punching, and bending copper and aluminum busbars. Powered by a high-performance Panasonic PLC system and a robust triple-motor hydraulic system, it allows three operators to work simultaneously, maximizing production efficiency and precision.
Key Processing Units
1. Precision Cutting Unit
Adopts common cross-cutting shearing for smooth, burr-free edges.
Integrally cast and forged crossbeam ensures no deformation under heavy loads.
Equipped with a 40-ton enlarged cylinder for powerful shearing force.
Tearing area controlled below 25%, ensuring high-quality cut sections.
2.Versatile Bending Unit

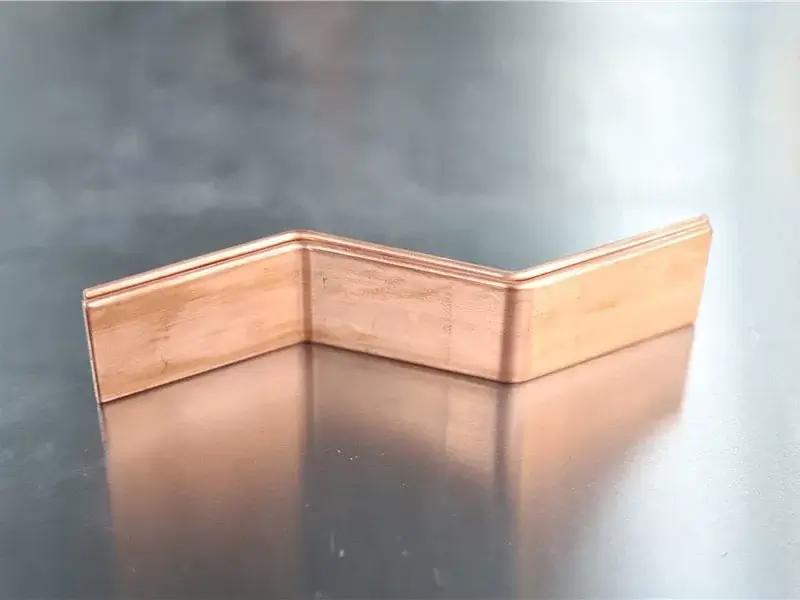

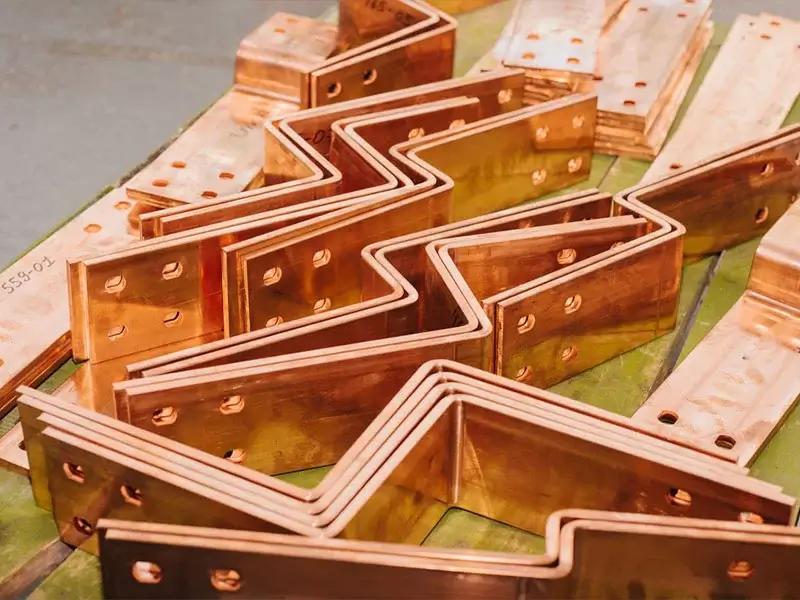

Panasonic PLC controlled with 6 standard modes: L-type, Z-type, U-type, and more.
Supports both Automatic (parameter-based) and Manual (custom debugging) operation.
High precision and repeatability for complex busbar configurations.
3.High-Efficiency Punching Unit
30-ton precision cylinder with imported sealing rings for long-term reliability.
435mm large turntable allows processing in one go without flipping the busbar.

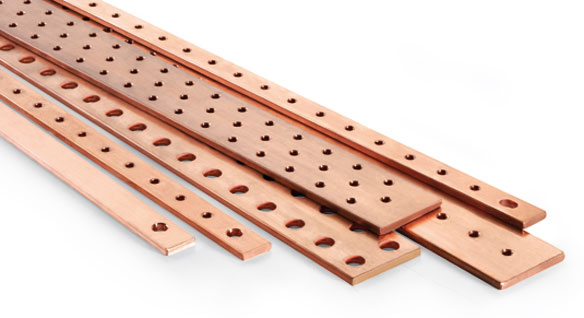

6 punching positions with 8 sets of default dies (Round, Oval, Square, etc.).
Precision error ±0.1mm with smooth, burr-free punching sections.
Advanced Control & Power
Panasonic CNC System: Features internationally renowned electronic components for durability and low maintenance.
Triple-Motor Hydraulic Power: Three independent full-copper motors allow simultaneous work of cutting, punching, and bending stations.
Quick-Response Solenoid Valves: Unique design improves responsiveness and reduces material loss.
